Retaining ring for shafts

 Grupo : 533

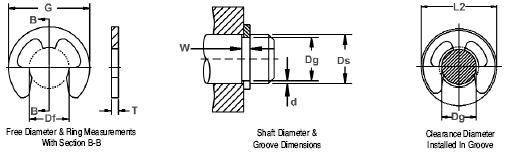

SHAFT DIAMETER RING DIMENSIONS GROOVE DIMENSIONS APPLICATION DATA SUPPLEMENTARY APPLICATION DATA
CLEARANCE ALLOW THRUST
DIAMETER LOAD (lbs.)
Código Reno para encomenda Dec. Equiv. Inch Approx. Fract. Equiv. Inch Approx. mm FREE DIAMETER THICKNESS Approx. Weight per 1.000 pieces DIAMETER WIDTH Nominal groove depth Free outside diameter (REF.) When sprung into groove "G" Rings Safety factor = 3 Grooves Safety factor = 2 Maximum allowable corner radii and chamfers of retained parts Allow assembly load with Rmax. or Chmax. Edge margin Calculated RPM limits
S S S D tol. t lbs. G Tol. W d Y C2 Pr Pg Rmax. Chmax. P´r(lbs.) Z
00.533.025 0.040 ----- 1.0 0.025 +0.001 -0.003 0.010 0.009 0.026 +0.002 -0.000 0.0015 0.012 0.007 0.079 0.090 13 6 0.015 0.010 13 0.014 40000
00.533.051 0.062 1/16 1.6 0.051 +0.001 -0.003 0.010 0.028 0.052 +0.002 -0.000 0.0015 0.012 0.005 0.140 0.150 20 7 0.030 0.020 20 0.010 40000
01.531.051 0.062 1/16 1.6 0.051 +0.001 -0.003 0.020 0.094 0.052 +0.002 -0.000 0.0015 0.023 0.005 0.187 0.200 40 7 0.035 0.025 40 0.010 40000
02.531.051 0.062 1/16 1.6 0.051 +0.001 -0.003 0.010 0.030 0.052 +0.002 -0.000 0.0015 0.012 0.005 0.156 0.165 20 7 0.030 0.020 20 0.010 40000
00.533.069 0.094 3/32 2.4 0.069 +0.002 -0.003 0.015 0.10 0.074 +0.002 -0.000 0.0015 0.020 0.010 0.230 0.245 45 20 0.053 0.040 45 0.020 36000
00.533.073 0.094 3/32 2.4 0.073 +0.001 -0.003 0.015 0.058 0.074 +0.002 -0.000 0.0015 0.020 0.010 0.187 0.200 45 20 0.040 0.030 45 0.020 36000
00.533.076 0.110 7/64 2.8 0.076 +0.001 -0.003 0.015 0.31 0.079 +0.002 -0.000 0.0015 0.020 0.015 0.375 0.390 60 40 0.080 0.060 60 0.030 35000
00.533.094 0.125 1/8 3.2 0.094 +0.001 -0.003 0.015 0.087 0.095 +0.002 -0.000 0.0015 0.020 0.015 0.230 0.240 65 45 0.040 0.030 65 0.030 35000
00.533.100 0.140 9/64 3.6 0.100 +0.001 -0.003 0.015 0.060 0.102 +0.002 -0.000 0.0015 0.020 0.019 0.203 0.215 75 60 0.029 0.022 75 0.038 32000
00.533.108 0.140 9/64 3.6 0.108 +0.001 -0.003 0.015 0.10 0.110 +0.002 -0.000 0.002 0.020 0.015 0.250 0.265 75 45 0.040 0.030 75 0.030 32000
00.533.102 0.140 9/64 3.6 0.102 +0.001 -0.003 0.025 0.21 0.105 +0.002 -0.000 0.002 0.029 0.017 0.270 0.285 170 60 0.060 0.045 170 0.034 32000
00.533.114 0.156 5/32 4.0 0.114 +0.001 -0.003 0.025 0.21 0.116 +0.002 -0.000 0.002 0.029 0.020 0.282 0.295 175 75 0.060 0.045 175 0.040 31000
00.533.125 0.172 11/64 4.4 0.125 +0.001 -0.003 0.025 0.24 0.127 +0.002 -0.000 0.002 0.029 0.022 0.312 0.325 180 90 0.060 0.045 180 0.044 30000
00.533.122 0.188 3/16 4.8 0.122 +0.001 -0.003 0.025 0.45 0.125 +0.002 -0.000 0.002 0.029 0.031 0.375 0.39 200 135 0.060 0.045 200 0.062 30000
00.533.145 0.188 3/16 4.8 0.145 +0.001 -0.003 0.025 0.29 0.147 +0.002 -0.000 0.002 0.029 0.020 0.335 0.35 190 90 0.060 0.045 190 0.040 30000
00.533.185 0.219 7/32 5.6 0.185 +0.001 -0.003 0.025 0.47 0.188 +0.002 -0.000 0.002 0.029 0.015 0.437 0.45 225 75 0.060 0.045 225 0.030 26000
00.533.207 0.250 1/4 6.3 0.207 +0.001 -0.003 0.025 0.76 0.210 +0.003 -0.000 0.004 0.029 0.020 0.527 0.54 255 115 0.060 0.045 255 0.040 25000
00.533.243 0.312 5/16 7.9 0.243 +0.002 -0.004 0.025 0.57 0.250 +0.003 -0.000 0.004 0.029 0.031 0.500 0.52 325 225 0.060 0.045 325 0.062 22000
00.533.300 0.375 3/8 9.5 0.300 +0.002 -0.004 0.035 1.5 0.303 +0.003 -0.000 0.004 0.039 0.036 0.660 0.68 690 315 0.065 0.050 690 0.072 20000
00.533.337 0.438 7/16 11.1 0.337 +0.002 -0.004 0.035 1.5 0.343 +0.003 -0.000 0.004 0.039 0.047 0.687 0.71 830 480 0.065 0.050 830 0.094 16500
00.533.375 0.438 7/16 11.1 0.375 +0.002 -0.004 0.035 1.0 0.380 +0.003 -0.000 0.004 0.039 0.029 0.600 0.62 80 280 0.050 0.035 800 0.058 16500
00.533.392 0.500 1/2 12.7 0.392 +0.002 -0.004 0.042 2.5 0.396 +0.003 -0.000 0.004 0.046 0.052 0.800 0.82 1110 600 0.080 0.060 1110 0.104 14000
00.533.480 0.625 5/8 15.9 0.480 +0.003 -0.005 0.042 3.2 0.485 +0.003 -0.000 0.004 0.046 0.070 0.940 0.96 1420 1050 0.080 0.060 1420 0.140 12000
01.533.616 0.744 ----- 18.9 0.616 +0.003 -0.005 0.050 4.3 0.625 +0.003 -0.000 0.004 0.056 0.059 1.000 1.02 1900 1050 0.060 0.045 1900 0.118 11000
00.533.616 0.750 3/4 19.0 0.616 +0.003 -0.005 0.050 4.3 0.625 +0.003 -0.000 0.004 0.056 0.062 1.000 1.02 1950 1100 0.057 0.042 1900 0.124 11000
00.533.574 0.750 3/4 19.0 0.574 +0.003 -0.005 0.050 5.8 0.580 +0.003 -0.000 0.004 0.056 0.085 1.120 1.14 2000 1500 0.085 0.065 2000 0.170 10500
00.533.668 0.875 7/8 22.2 0.668 +0.003 -0.005 0.050 7.6 0.675 +0.003 -0.000 0.004 0.056 0.100 1.300 1.32 2350 2050 0.085 0.065 2350 0.200 9000
01.533.822 0.984 63/64 25.0 0.822 +0.003 -0.005 0.050 9.2 0.835 +0.003 -0.000 0.004 0.056 0.074 1.500 1.53 2600 1750 0.085 0.065 2700 0.148 6500
00.533.822 1.000 1 25.4 0.822 +0.003 -0.005 0.050 9.2 0.835 +0.003 -0.000 0.004 0.056 0.082 1.500 1.53 2650 1900 0.077 0.057 2700 0.164 6500
01.533.066 1.188 1 3/16 30.2 1.066 +0.006 -0.010 0.062 11.3 1.079 +0.005 -0.000 0.005 0.068 0.054 1.626 1.67 3450 1500 0.090 0.070 3450 0.108 5500
01.533.213 1.375 1 3/8 34.9 1.213 +0.006 -0.010 0.062 15.4 1.230 +0.005  -0.000 0.005 0.068 0.072 1.875 1.92 4100 2350 0.090 0.070 4100 0.144 4000
